Developer Guide

Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

• Most of the images in UI are taken from Feather - a collection of simply beautiful open source icons.

• The UI design is inspired by Warehouse Management System by Ashkan Fazeli

Setting up, getting started

Refer to the guide Setting up and getting started.

Table of Contents

• Design
  • Architecture
  • UI component
  • Logic component
  • Model component
  • Storage component
  • Common classes
• Implementation
  • Popups
    • Implementation
    • Showing a Popup
    • Executing commands in Popup
    • Design Considerations
  • Product
    • Implementation
    • Design Considerations
  • Product filters
    • Implementation
    • Design considerations
  • Item
    • Implementation
      • Adding an Item
      • Updating and deleting an Item
    • Design considerations
  • Undo/redo feature
    • Implementation
    • Design considerations:
• Link to guides
• Appendix: Requirements
  • Product scope
  • User stories
  • Use cases
    • UC1: Listing products
    • UC2: Adding a product
    • UC3: Delete a product
    • UC4: Update a product
    • UC5: Find products
    • UC6: Find out of stock products
    • UC7: Add an item
    • UC8: Delete an item
    • UC9: Update an item
    • UC10: Find items
    • UC11: Find expired items
    • UC12: Find expiring items
    • UC13: Update all products
    • UC14: Delete all products
    • UC15: Undo changes
    • UC16: Redo changes
  • Non-Functional Requirements
  • Glossary
• Appendix: Instructions for manual testing
  • Launch and shutdown
  • Deleting product(s)
  • Updating product(s)
  • Finding products
  • Undo/redo changes
  • Saving data

---

Design

Architecture

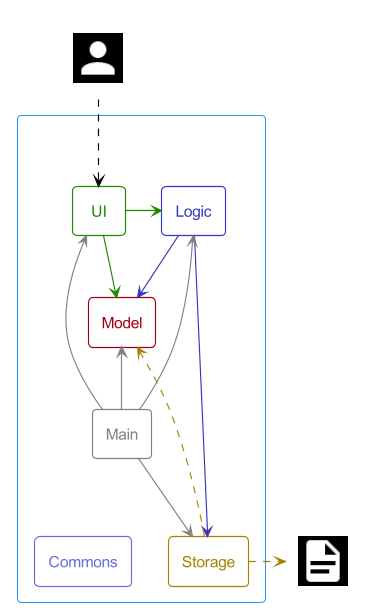

The Architecture Diagram given above explains the high-level design of the app.

Given below is a quick overview of the main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes and connects the components in the correct sequence.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

The core of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Lastly, Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

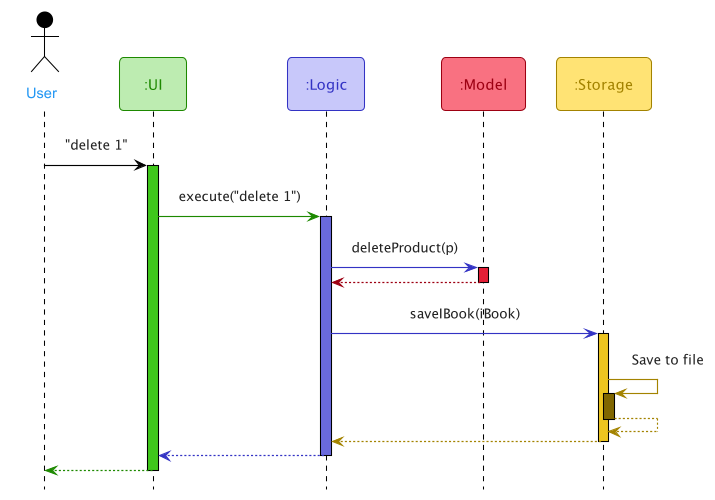

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

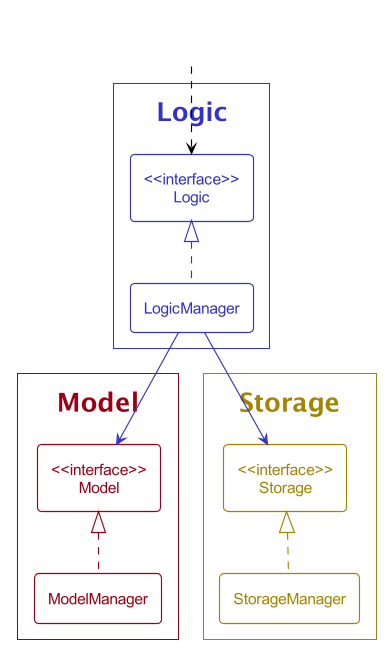

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface.

Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside components from being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details about each component.

UI component

API: Ui.java.

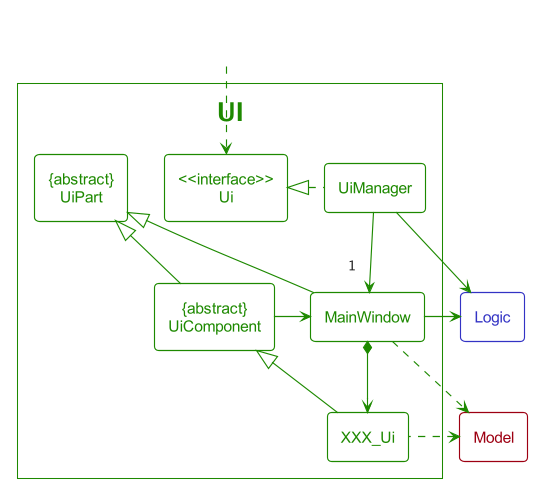

The diagram below shows a simplified view of the UI component.

XXX_Ui represents CommandBox, ProductTable, PopupHandler, ControlBox, etc.

The UI consists of a UiManager that implements the Facade interface UI. UiManager consists of a MainWindow that holds all UI components of the application. UiComponent is an abstract class that contains a reference to the MainWindow.

By having XXX_Ui inherit from UiComponent, we allow navigation from XXX_Ui to MainWindow. The navigation is helpful for some UI components that need to call methods in UiManager.

For example, CommandBox calls the method executeCommand in MainWindow when the user enters a command.

The Table component

UI components that are related to the main display table are grouped under the Table package. The diagram below shows a simplified internal structure of Table.

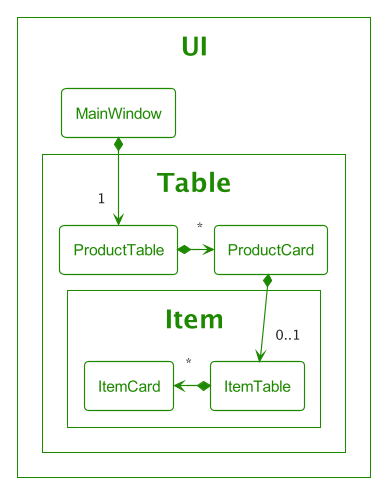

The MainWindow contains a ProductTable that holds multiple ProductCard objects that represent Product. Subsequently, each ProductCard may contain ItemTable which has multiple ItemCard objects to represent Item.

The Popup component

UI components that are related to a popup window are grouped under the Popup package. The diagram below shows a simplified internal structure of Popup.

PopupXXX represents PopupAddProduct, PopupUpdateProduct, PopupAddItem, etc. The MainWindow contains a PopupHandler that provides APIs for operations related to a popup window.

Every popup inherits the Popup abstract class which contains the implementation of the common methods required in all popups, e.g show(), hide(), setFeedbackToUser(), etc.

The abstract class Popup inherits UiComponent for navigability to MainWindow.

The Control component

UI components that are related to the ControlBox are grouped under the Control package. The diagram below shows a simplified internal structure of Control.

The ControlBox is the box located just above the main display table. It holds the button and Filter tags.

The MainWindow contains a ControlBox that holds multiple Filter that represents each AttributeFilter.

More about UI

The UI component uses the JavaFX UI framework. The layout of these UI parts is defined in corresponding .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml.

The CSS files can be found in src/main/resources/view/css.

The images used are located in src/main/resources/images.

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Product, Item object residing in the Model.

Logic component

API: Logic.java

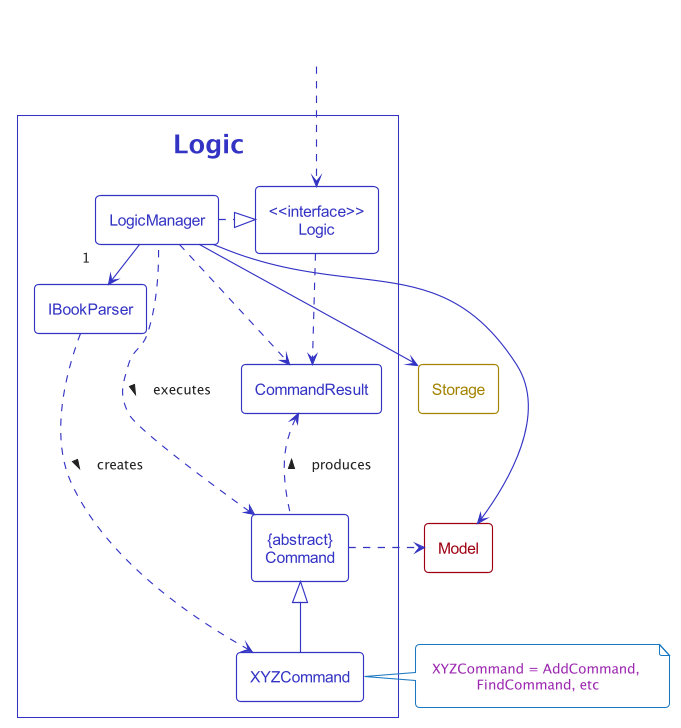

The diagram below shows a simplified view of the Logic component.

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the IBookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a product).
4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

Commands are separated into different packages depending on their functionalities. Thus, the commands package includes the item package for item commands and the product package for product commands. The rest of the commands that do not fit into those two are directly under the command package.

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

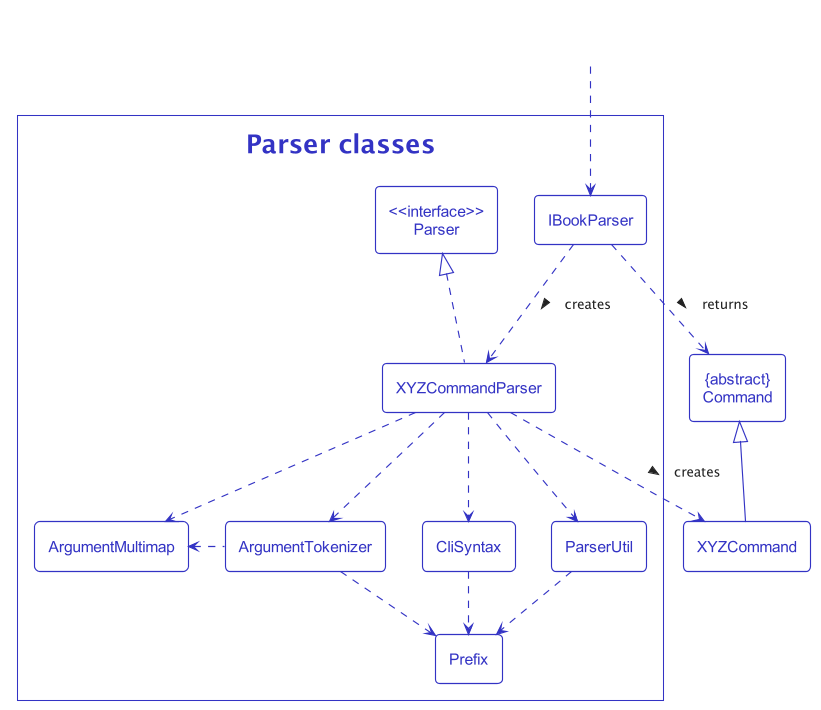

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the IBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create an XYZCommand object (e.g., AddCommand) which the IBookParser returns as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g. during testing.

Model component

API: Model.java

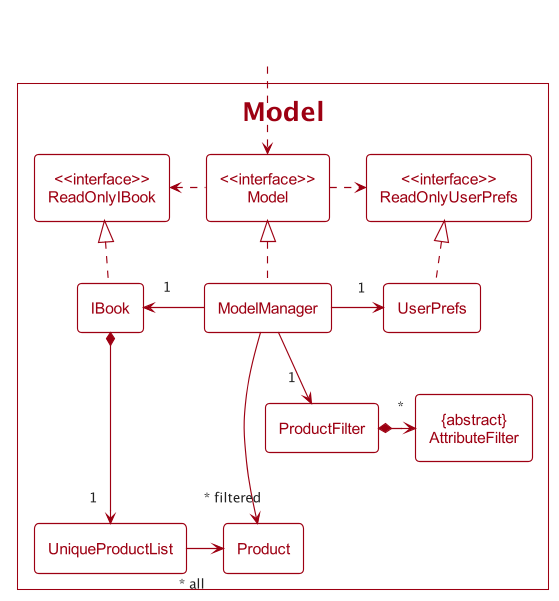

The diagram below shows a simplified view of the Model component.

The Model component,

• stores the IBook data, i.e. all Product objects (which are contained in a UniqueProductList object).
• stores the currently ‘selected’ Product objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Product> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores the current ProductFilter which is applied to the filtered list.
• stores a UserPrefs object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPrefs object.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components).

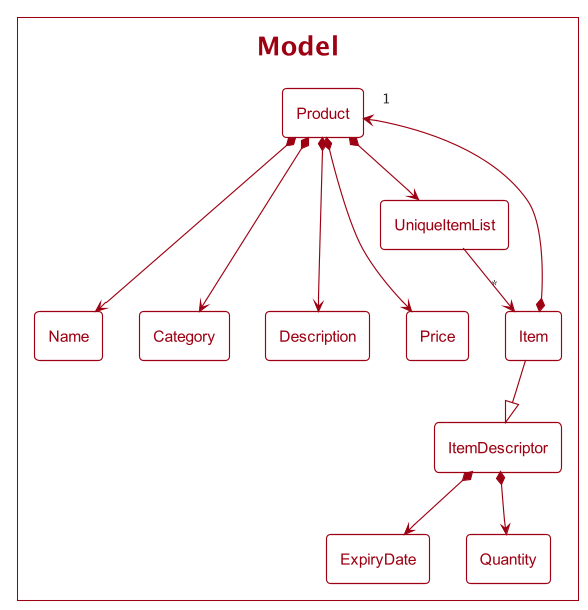

A more detailed representation of the Product class is shown below which includes more details regarding the Item class.

• The Item object enforces a two-way relationship with a Product.
• An Item can only belong to one Product, but a Product can contain many Item objects.

Storage component

API: Storage.java

The Storage component,

• can save both IBook data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both IBookStorage and UserPrefStorage, which means it can be treated as either one when only one functionality is needed.
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model).

Common classes

Classes used by multiple components are in the seedu.ibook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Popups

Implementation

The diagram below shows a simplified internal structure of Popup.

PopupXXX represents PopupAddProduct, PopupUpdateProduct, PopupAddItem, etc

The implementation of popups is facilitated by the PopupHandler class and the Popup abstract class. Each popup is contained by PopupHandler which provides APIs for operations related to the popup.

The API provided by PopupHandler are:

• isShowing() – Checks if any one of the popups is showing.
• setFeedbackToUser(String) – Shows feedback to the user in the showing popup.
• showPopupXXX() – Shows PopupXXX.
• hidePopup() – Hides the showing popup.

The showPopupXXX() method in PopupHandler will make sure that at most one popup is showing at a time. This is to prevent overcrowding the user’s screen.

Every popup is inherited from the Popup abstract class which contains the implementation of the common methods required in all popups.

The methods in Popup are:

• show() — Shows the popup window.
• hide() — Hides the popup window.
• isShowing() — Checks if the popup is showing.
• setFeedbackToUser(String) — Shows feedback to the user in the popup.
• execute(String) — Executes the given command.

Showing a Popup

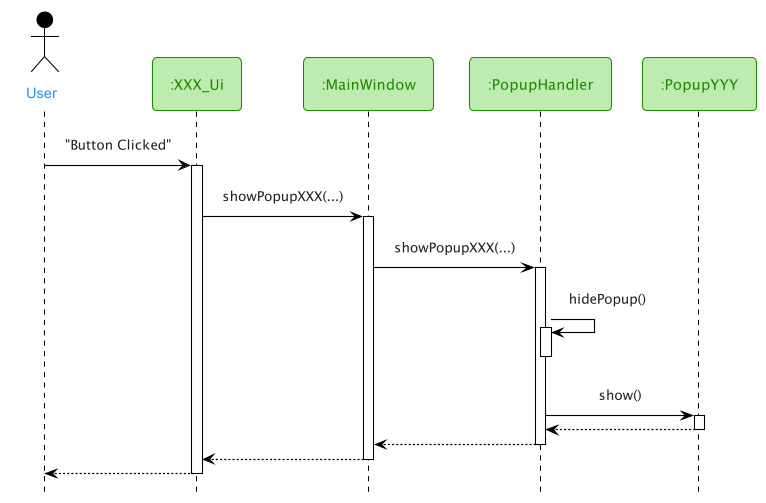

The following sequence diagram shows how a Popup is displayed once a button is clicked.

XXX_Ui represents UI components that have a button that will open a popup once clicked, e.g. ControlBox, ProductCard, ItemCard, etc.

PopupYYY represents different types of Popup, e.g. PopupAddProduct, PopupUpdateProduct, PopupAddItem, etc.

As seen from the diagram, the components call showPopupXXX(...) in MainWindow instead of calling it from PopupHandler directly.

This is to reduce coupling between the UI components by removing the dependency on PopupHandler to open a popup. Also, it avoids the issue of passing PopupHandler into a deeply nested UI component.

Executing commands in Popup

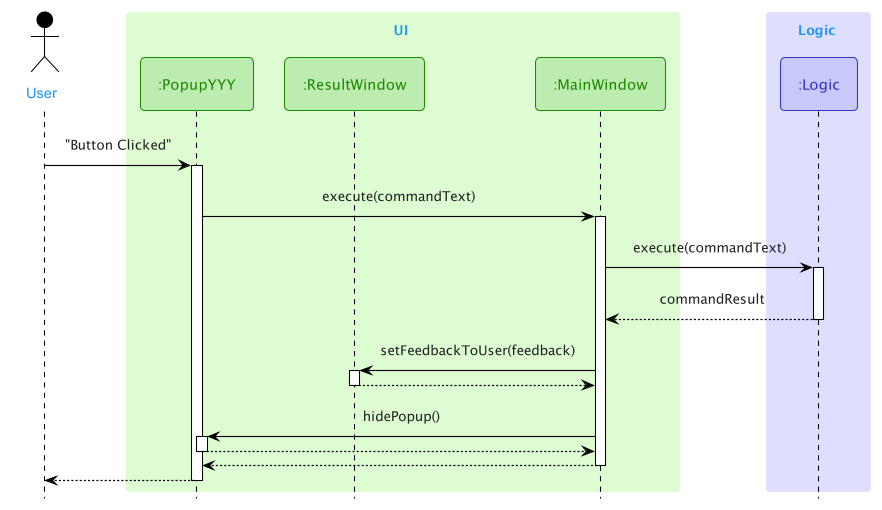

The sequence diagram below describes a successful execution of a command in a popup.

PopupYYY represents different types of Popup, e.g. PopupAddProduct, PopupUpdateProduct, PopupAddItem, etc.

When a user clicks a button in PopupYYY, the associated command is generated from the inputs. The command is then passed to MainWindow for execution. This process is similar to how a command is executed from CommandBox.

The commandResult will then be sent to ResultWindow for display and PopupYYY will be hidden.

Design Considerations

Aspect: How to handle popup

• Alternative 1: Pass in popups created at MainWindow to UI components that require it.
  • Pros: Fewer function calls and better performance.
  • Cons: Increases coupling as these popups might be required by deeply nested components.
    e.g ItemCard has to call PopupModifyItem but it resides in MainWindow > ProductTable > ItemTable. This causes ProductTable and ItemTable to have an unnecessary dependency on PopupModifyItem.



• Alternative 2: Create a popup in UI components that require it.
  • Pros: Easy solution to reduce coupling.
  • Cons:
    1. Difficult to manage pop-ups and check whether the popups are currently showing.
    2. Two of the same popups can be opened at the same time.



• Alternative 3 (current choice): Create PopupHandler in MainWindow and provide methods for all UI components to open a Popup.
  • Pros: Centralized control for pop-ups and reduces coupling.
  • Cons:
    1. Increases complexity for MainWindow.
    2. Less efficient, as more function calls are required.

Product

Implementation

The implementation of product is entirely governed by the Product class. The Product class is immutable and guarantees that all fields are valid and immutable as well.

Thus updating a product will create a new Product object. The items from the original Product will be copied entirely into the new Product object.

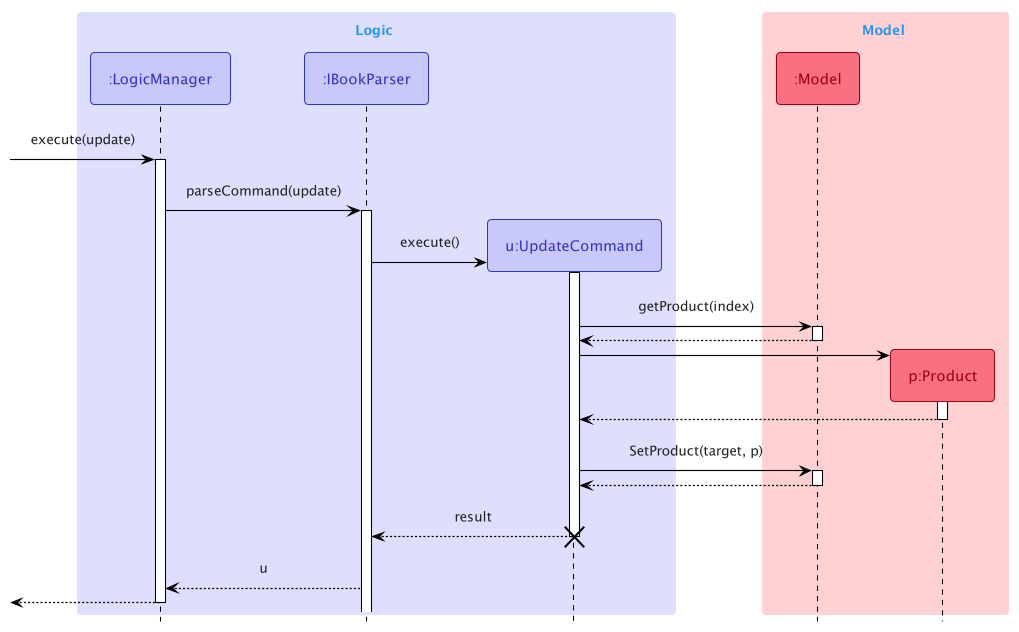

The following sequence diagram shows how the Update command works:

Design Considerations

Aspect: How to design the Product structure

• Alternative 1: Make Product mutable.
  • Pros: Easy to implement.
  • Cons: Hard to track state in undo/redo feature.



• Alternative 2 (current choice): Make Product immutable.
  • Pros: Removes the need for listeners for UI to track product states.
  • Cons: The cost of updating a product may be huge.

Product filters

Implementation

The implementation of product filter is facilitated by the ProductFilter class and the AttributeFilter class. ProductFilter contains a list of AttributeFilter which specifies the filter for the individual attributes of a product that was queried in the Find command.

Both the ProductFilter as well as the AttributeFilter has a test() method to test whether a given Product fulfils the query specified by the user.

Given below is the class diagram of the ProductFilter class and the AttributeFilter class.

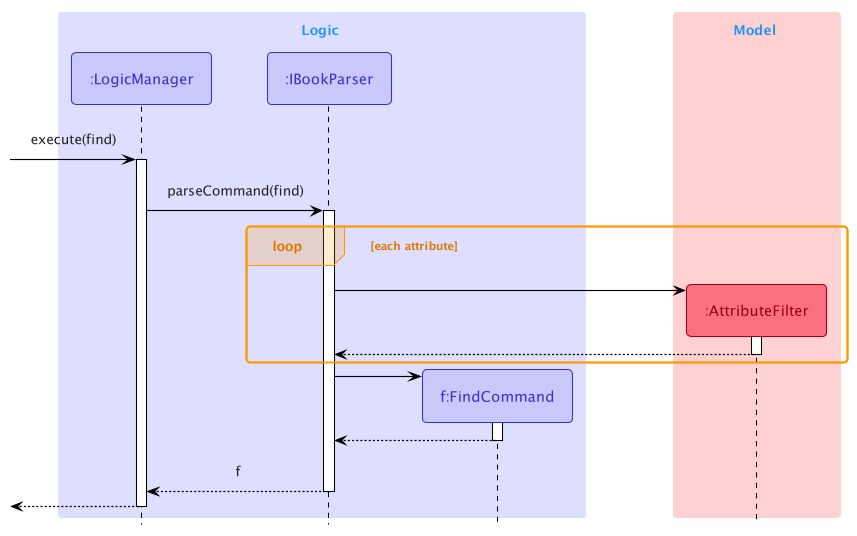

The sequence diagram below shows how the FindCommand object is created:

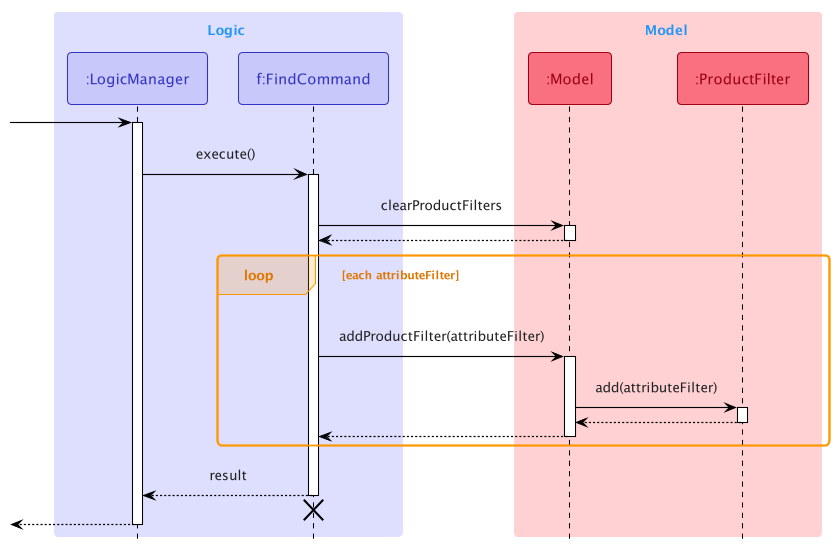

The sequence diagram below shows how the FindCommand object is executed:

As different attributes have different constraints, the parse() method in the FindCommandParser checks that all the attributes are valid before creating the AttributeFilter and the FindCommand objects. If there are any invalid attributes, an exception would be thrown.

When executing the FindCommand, the clearProductFilters() method of the Model would be called to ensure that previous filters are removed. The individual AttributeFilters would then be applied by calling the addProductFilter() method in the Model class. This would then update the list of filtered products by checking if the product fulfils every condition in the AttributeFilter (i.e. returning true for when the test() method is called with Product as the argument).

The updated filtered product list would then be displayed in the GUI.

Design considerations

Aspect: How to filter the products:

• Alternative 1: Create a single predicate as the product filter.
  • Pros: Easy to implement.
  • Cons: The user does not have fine-grained control over the current filter.



• Alternative 2 (current choice): Create a ProductFilter that contains a list of AttributeFilter
  • Pros: Allow the UI to display the individual AttributeFilter being applied and delete any one of them individually.
  • Cons: More complicated to implement.

Item

Implementation

The Item class is implemented to encapsulate two data fields, ExpiryDate and Quantity. Product has a one-to-many relationship with Item, i.e. one Product can have multiple Item objects under it.

Listed below are the few behavioural requirements for Item, along with the classes/interfaces related to it.

• A Product must not have two Item objects that are considered the same, this is enforced by UniqueItemList.
• An Item without a Parent is characterised using the ItemDescriptor.

ItemDescriptor contains an ItemDescriptor#toItem(Product) method to ensure the associated Product is given before creating the Item object.

The motivation for such implementation is due to the parsing of the add-item command when the fields of Item need to be populated before the associated Product is retrieved. We wanted to enforce the relationship between Item and Product to reduce unforeseen misuses and bugs.

Adding an Item

The sequence diagram below shows how add-item 1 e:2022-12-13 q:10 is handled:

The sequence diagram below shows how an Item is added to a Product’s UniqueItemList. This happens within ModelManager which implements the interface Model containing the method Model#addItem(Product, Item).

Updating and deleting an Item

These two operations are similar to adding an Item as shown in the section above.

Design considerations

Aspect: How to create Item during the parsing of an add-item command:

• Alternative 1: Retrieve the respective Product within the parser.
  • Pros: Easy solution.

  • Cons: Allows the parser to interact with model and logic, and increases coupling.



• Alternative 2: Create a command object with each field as a parameter.
  • Pros: Easy solution.

  • Cons: Complicates the AddItemCommand constructor and requires modification of constructor signature whenever there are updates to Item fields.



• Alternative 3 (current choice): ItemDescriptor to temporarily hold the fields’ value, then converted to Item later when Product is specified.
  • Pros: Good abstraction.
  • Cons: Requires an extra class to be created.

Undo/redo feature

Implementation

The undo/redo mechanism is facilitated by ReversibleIBook. It extends IBook with versions of methods that are reversible and uses StateChangeRecorder to record all changes made to IBook, which internally stores changes as StateChange. ReversibleIBook implements the following operations:

• prepareForChanges()  —  Prepares a clean workspace to record the next possible changes.
• saveChanges()  —  Saves all changes made to IBook as a StateChange into StateChangeRecorder.
• undo()  —  Reverts the most recent changes.
• redo()  —  Restores the most recently undone changes.

These operations are exposed in the Model interface as Model#prepareIBookForChanges(), Model#saveIBookChanges(), Model#undoIBook() and Model#redoIBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

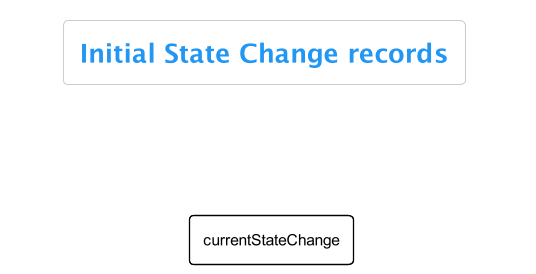

Step 1. The user launches the application for the first time. The ReversibleIBook will be initialized, which in turn initializes StateChangeRecorder with a stateChanges list consisting of zero StateChange records.

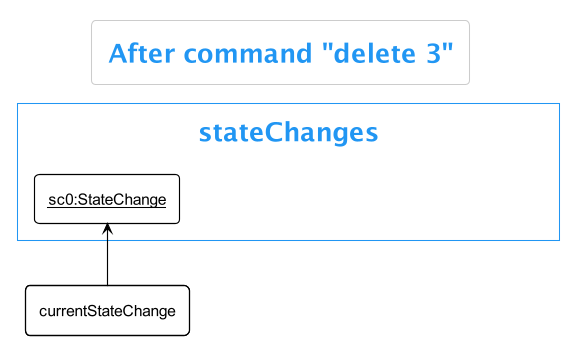

Step 2. The user executes delete 3 command to delete the 3rd product in the iBook. The delete command calls Model#saveIBookChanges() after its execution, causing changes made to iBook to be recorded as a StateChange and stored in the stateChanges list. The currentStateChange is now pointing to this most recent StateChange.

Step 3. The user executes add n:Maggie​ p:2.00 to add a new product. This command also calls Model#saveIBookChanges(), causing another StateChange to be saved into the stateChanges list.

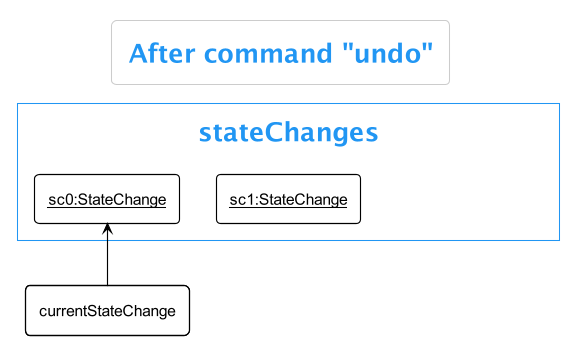

Step 4. The user now decides that adding the product was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoIBook(), which will get and execute the actions needed to revert this change. currentStateChange will then move once to the left, pointing to the most recent stateChange (with respect to the state of IBook after the undo command).

The following sequence diagram shows how the undo operation works:

The redo command does exactly the opposite  —  it calls Model#redoIBook(), which moves the currentStateChange to the right by one, pointing to the previously reverted changes, then performs the actions needed to restore them.

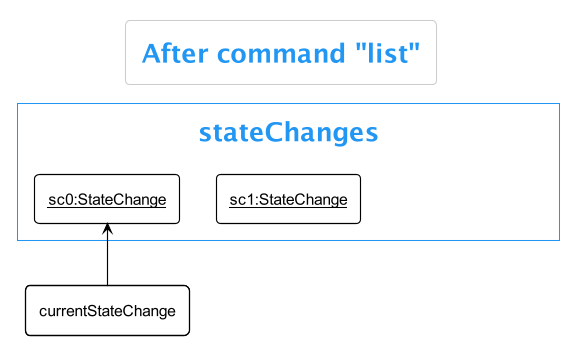

Step 5. The user then decides to execute the command list. Commands that do not make any changes to IBook, such as list, will not call Model#saveIBookChanges(). Thus, state change records in StateChangeRecorder remain unchanged.

Step 6. The user executes clear, which again will call Model#saveIBookChanges() at the end of its execution. Since the currentStateChange is not pointing at the end of the stateChanges list, all state changes after the currentStateChange will be cleared.

Reason: It does not make sense to redo the add n:Maggie​ p:200 command. This is the convention that most modern desktop applications follow.

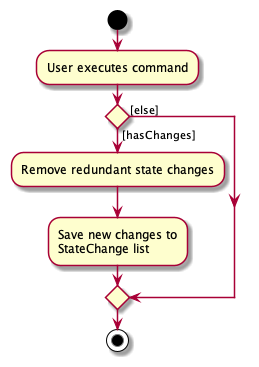

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1: Save the entire iBook.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.



• Alternative 2 (current choice): Methods that make changes to iBook have corresponding reverse actions.
  • Pros: Uses less memory (e.g. for delete, just save the product being deleted).
  • Cons: We must ensure that the implementation of each method is correct.

---

Link to guides

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: A storekeeper who

• has a need to manage different products in the store.
• is comfortable with CLI but prefers GUI for certain occasions.
• is forgetful and easily loses track of expiry dates in a store.
• is forgetful and sometimes forgets command syntax.
• prefers desktop apps over other types.

Value proposition: Manage products and their expiry dates with ease using CLI.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority level	As a …​	I want to …​	So that I can…​
* * *	user	add a product	input product data that I want to store
* * *	user	list all products added	check on all important details of all items at once
* * *	user	search for specific products by category	find the relevant products and its details quickly
* * *	user	delete a product	remove entries that I no longer need
* * *	user	update a product’s information	keep the details relevant
* *	beginner user	learn about the basic features	quickly get started with using the app
* *	user	get reminders on which stocks are nearing the expiry dates	prioritize their sales
* *	user familiar with the app	receive orders from an item and update in the app	easily manage large orders of several products
* *	user familiar with the app	add customer records	keep track of their spending habits
* *	user familiar with the app	archive customer records	ignore customers that are no longer active
* *	professional user	automate the reduction of the price of items when near the expiry dates	easily sell out the products via a discount
*	user	import existing products to the application	transition to this app quickly
*	user familiar with the app	create multiple accounts for my staff to use	restrict the access rights that they have
*	user familiar with the app	delete staff accounts	prevent staff no longer working from using the account
*	user familiar with the app	add custom permissions for the staff accounts	modify their access rights related to their job scope
*	professional user	create and use my own shortcut commands	accomplish my task faster

Use cases

For all use cases below, the System is the IBook and the Actor is the user, unless specified otherwise.

UC1: Listing products

MSS

1. User requests to list all products.

2. IBook removes all active filters and shows the list of products.

   Use case ends.

Extensions

• 1a. The list is empty.

  • 1a1. IBook shows an empty table.

    Use case ends.

UC2: Adding a product

MSS

1. User requests to add a product to iBook.

2. IBook adds the product.

   Use case ends.

Extensions

• 1a. Required fields are all present but are invalid.

  • 1a1. IBook shows an error message.

    Use case ends.

• 1b. Not all required fields are present (e.g. Name).

  • 1b1. IBook shows an error message.

    Use case ends.

• 1c. Optional fields like Category are missing.

  • 1c1. IBook automatically sets the category to miscellaneous.

    Use case resumes at step 2.

UC3: Delete a product

MSS

1. User requests to list products (UC1).
2. User requests to delete a product in the list specified by the index.

3. IBook deletes the product.

   Use case ends.

Extensions

• 2a. Index is not provided.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. The given index is invalid.

  • 2b1. IBook shows an error message.

    Use case ends.

UC4: Update a product

MSS

1. User requests to list products (UC1).
2. User requests to update a product in the list specified by the index.

3. IBook updates the product.

   Use case ends.

Extensions

• 2a. Index is not provided.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. The given index is invalid.

  • 2b1. IBook shows an error message.

    Use case ends.

UC5: Find products

MSS

1. User requests to find products by providing filters.

2. IBook updates the list to show the requested products.

   Use case ends.

Extensions

• 1a. Requested fields are invalid.

  • 1a1. IBook shows an error message.

    Use case ends.

• 1b. No product matches the given filter.

  • 1b1. IBook shows a cute image stating nothing found.

    Use case ends.

UC6: Find out of stock products

MSS

1. User requests to find products that are out of stock.

2. IBook updates the list to show the requested products.

   Use case ends.

Extensions

• 1a. No products found.

  • 1a1. IBook shows a cute image stating nothing found.

    Use case ends.

UC7: Add an item

MSS

1. User requests to list products (UC1)
2. User requests to add an item to a product in IBook.

3. IBook adds the item to the product.

   Use case ends.

Extensions

• 2a. Required fields are all present but are invalid.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. Not all required fields are present (e.g. Expiry Date, Quantity).

  • 2b1. IBook shows an error message.

    Use case ends.

UC8: Delete an item

MSS

1. User requests to list products (UC1).
2. User requests to delete an item in the list specified by the index.

3. IBook deletes the item.

   Use case ends.

Extensions

• 2a. Index is not provided.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. The given index is invalid.

  • 2b1. IBook shows an error message.

    Use case ends.

UC9: Update an item

MSS

1. User requests to list products (UC1).
2. User requests to update an item in the list specified by the index.

3. IBook updates the product.

   Use case ends.

Extensions

• 2a. Index is not provided.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. The given index is invalid.

  • 2b1. IBook shows an error message.

    Use case ends.

• 2c. The fields provided are invalid

  • 2c1. IBook shows an error message.

  Use case ends.

UC10: Find items

MSS

1. User requests to find items by providing filters.

2. IBook updates the list to show the requested items.

   Use case ends.

Extensions

• 1a. Requested fields are invalid.

  • 1a1. IBook shows an error message.

    Use case ends.

• 1b. No product matches the given filter.

  • 1b1. IBook shows a cute image stating nothing found.

    Use case ends.

UC11: Find expired items

MSS

1. User requests to find items that are expired.

2. IBook updates the list to show the requested items.

   Use case ends.

Extensions

• 1a. No items found.

  • 1a1. IBook shows a cute image stating nothing found.

    Use case ends.

UC12: Find expiring items

MSS

1. User requests to find items that are expiring within a certain amount of days

2. IBook updates the list to show the requested items

   Use case ends.

Extensions

• 1a. Number of days is invalid.

  • 1a1. IBook show an error message.

    Use case ends.

• 1b. No items found.

  • 1b1. IBook shows a cute image stating nothing found.

    Use case ends.

UC13: Update all products

MSS

1. User finds products they want to update using the find command (UC5).
2. User requests to update all products displayed in the list.

3. IBook updates the list to show all products updated.

   Use case ends.

Extensions

• 2a. Some provided fields are invalid.

  • 2a1. IBook shows an error message.

    Use case ends.

• 2b. The current display list is empty.

  • 2b1. IBook shows an error message.

    Use case ends.

UC14: Delete all products

MSS

1. User finds products they want to delete using the find command (UC5).
2. User requests to delete all products displayed in the list.

3. IBook updates the list to show all products updated.

   Use case ends.

Extensions

• 2a. The current display list is empty.

  • 2a1. IBook shows an error message.

    Use case ends.

UC15: Undo changes

MSS

1. User requests to undo the most recent command that made changes to iBook.

2. IBook revert the most recent changes.

   Use case ends.

Extensions

• 1a. There are no changes that can be reverted.

  • 1a1. IBook shows an error message.

    Use case ends.

UC16: Redo changes

MSS

1. User requests to redo the most recent undone command that made changes to iBook.

2. IBook restore the most recent undone changes.

   Use case ends.

Extensions

• 1a. There are no changes that can be restored.

  • 1a1. IBook shows an error message.

    Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 products without a noticeable sluggishness in performance for typical usage.
3. A user with above-average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Data should be auto-saved locally each time a new command has been entered.
5. Should reload saved data accurately provided that data is not corrupted.
6. The System should respond within 3 seconds.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the .jar file and copy it into an empty folder.

   2. Double-click the jar file. If double clicking doesn’t work, type java -jar ibook.jar in a terminal in the same directory as the jar file
      Expected: Shows the GUI with a set of sample products. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file or running java -jar ibook.jar.
      Expected: The most recent window size and position on the screen are retained.

Deleting product(s)

1. Deleting a product while all products are being shown

   Prerequisites: List all products using the list command. Multiple products in the list.

   1. Test case: delete 1
      Expected: First product is deleted from the list. Details of the deleted product are shown in the command output window.

   2. Test case: delete 0
      Expected: No product is deleted. Error details are shown in the command output window.

   3. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. Deleting all products

   Prerequisites: There are existing products in the table.

   1. Test case: delete-all
      Expected: All products shown in the table will be deleted. This can be verified by using list command to show all products in iBook.

Updating product(s)

1. Updating a product while all products are being shown

   Prerequisites: List all products using the list command. Multiple products in the list.

   1. Test case: update 1 d:update description
      Expected: First product in the list is updated. Its description will now become update description.

   2. Test case: update 2 p:100.99 d:another description
      Expected: Second product in the list is updated. Its price and description will now become 100.99 and another description respectively.

   3. Test case: update 0 p:9.99
      Expected: No product is updated. Error details are shown in the result window.

   4. Other incorrect update commands to try: update, update x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. Updating all products

   Prerequisites: There are existing products in the table.

   1. Test case: update-all p:19.99 d:Stock clearance sales
      Expected: All products shown in table will be updated to have a price of $19.99 and description Stock clearance sales.

Finding products

1. Find products that match certain attributes like (NAME, CATEGORY, DESCRIPTION, PRICE)

   Prerequisites: There are existing products in the table.

   1. Test case: find n:kaya
      Expected: Products that contain kaya in the name are displayed. Details such as the number of products found would be shown in the status message.

   2. Test case: find n:kaya c:bread
      Expected: Products that contain kaya in the name and bread in the category is displayed. Details such as the number of products found would be shown in the status message.

   3. Test case: find
      Expected: Error detail is shown in the command output window as at least one attribute needs to be specified in the command.

   4. Other incorrect find commands to try: find blabla
      Expected: Similar to previous.

2. Find products that are out of stock

   Prerequisites: There are existing products in the table.

   1. Test case: out-of-stock
      Expected: Products that have no items would be displayed.

3. Find items that have expired

   Prerequisites: There are existing products in the table.

   1. Test case: expired
      Expected: Products that contain expired items would be displayed.

4. Find items that are expiring

   Prerequisites: There are existing products and items in the table.

   1. Test case: remind 5
      Expected: Items that are expiring within the next 5 days would be displayed.

   2. Test case: remind 0
      Expected: Items that are expiring on the same day would be displayed.

   3. Test case: remind -1
      Expected: Error detail is shown in the command output window as the days specified cannot be negative.

   4. Other incorrect commands to try: remind blabla, remind 9999999999999
      Expected: Similar to previous.

Undo/redo changes

1. Undo changes

   Prerequisites: There are existing products in the table. At least one command that makes changes to iBook (e.g. add/update/delete) has been performed.

   1. Test case: undo
      Expected: The most recent change made to iBook is reverted.

   2. Test case: add n:new_product p:3.00 then undo
      Expected: The new_product just added will be deleted.

   3. Test case: undo haha
      Expected: Any additional input after the keyword undo will be ignored as if this is a normal undo command.

2. Redo changes

   Prerequisites: A undo command has just been successfully executed.

   1. Test case: redo
      Expected: The just undone changes will be redone again.

   2. Test case: add n:new_product p:3.00 then undo then redo
      Expected: The new_product just deleted by the undo command will be added back again.

   3. Test case: redo haha
      Expected: Any additional input after the keyword redo will be ignored as if this is a normal redo command.

Saving data

1. Dealing with missing/corrupted data files

   Prerequisites: iBook is not currently running.

   1. Locate the data file of iBook at [JAR file location]/data/ibook.json.

   2. Delete the file or replace the data in it with random garbage values.
      Expected: The following launch of iBook will load in sample products.
